Wolfhound MC Thermal Imaging System

The commercial thermal weapon sights WOLFHOUND have been a big hit among hunters all over the world. By popular demand, there is now a compact and affordable clip-on thermal sight for light-recoil firearms and short-range engagements: the WOLFHOUND-MC.

Out of stock

SKU: WOLF MC Category:

Description

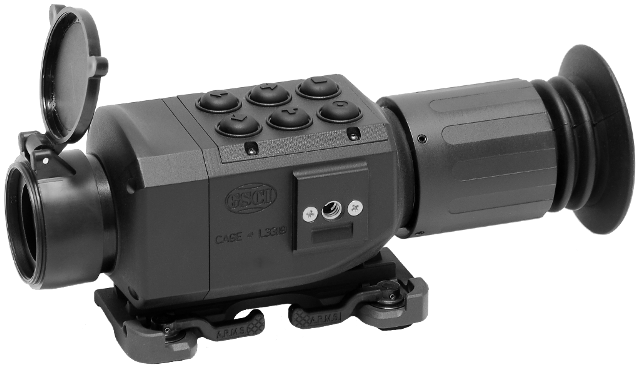

WOLFHOUND-MC     Compact Thermal Clip-On Sight



The commercial thermal weapon sights WOLFHOUND have been a big hit among hunters all over the world. By popular demand, there is now a compact and affordable clip-on thermal sight for light-recoil firearms and short-range engagements: the WOLFHOUND-MC. Utilizing the quick release weapon mount, the WOLFHOUND-MC easily attaches to and detaches from standard 1913 Picatinny rails in front of daytime scopes. This gives the operator the ability to deploy it on multiple weapon platforms without the need to dedicate a thermal scope. WOLFHOUND-MC sight has built-in digital collimator which allows easy pairing with the host day scope. WOLFHOUND-MC can be paired with day time optics with magnifications up to 8X.



Features:

  • High-Resolution Uncooled FPAs: 384×288 or 640×480
  • Fast Refresh Rate: 50Hz
  • Quality and “Fast” Low-F-Number Germanium Lens
  • Ultra-Low Power Consumption
  • Completely Silent System Operation
  • Video-out for External Display and Recording
  • High-Resolution AMOLED Display 800×600
  • Stadiametric Rangefinder
  • 24-hour Operation
  • Manual and Automatic FPA Sensitivity Adjustment
  • Manual Display Brightness Adjustment
  • Black Hot / White Hot Polarity Control
  • External Battery Pack Compatibility
  • Complete Dust– and Waterproof Protection
  • Available for Worldwide Export
  • 7-Year Manufacturer’s Warranty
  • Made in Canada



Optical Magnification 1X
Lens Focal Length and F-Number 25mm, f/1.0
Field of View 14.9° x 11.2°
Focusing Range 1m .. Infinity
FPA Resolution and Pitch 384×288, 17µm
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Sensitivity <60mK
FPA Refresh Rate 50Hz
Digital Zoom 2X and 4X
Display AMOLED, Colour, 800×600
Imaging Modes 1 Monochrome + 8 Colour
Accepted Batteries 2pcs AA Lithium
Battery Life Up to 5 Hours
Max. Detection Human (1.7×0.5m) 830 m
Max. Detection Vehicle (2.3×2.3m) 1,130 m
Environmental Protection IP66 or Better (Optional)
Dimensions, mm 175x55x60
Weight, grams 600



WOLFHOUND-MC Spec Sheet
