Description

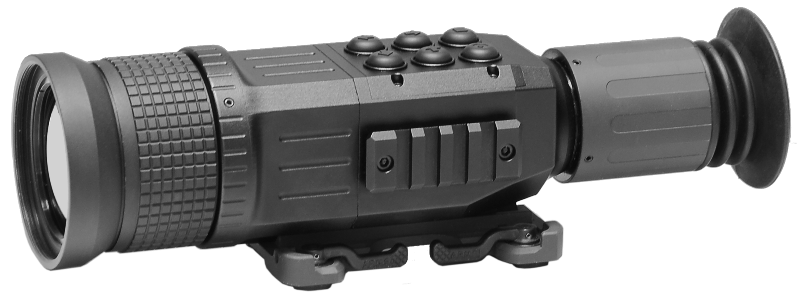

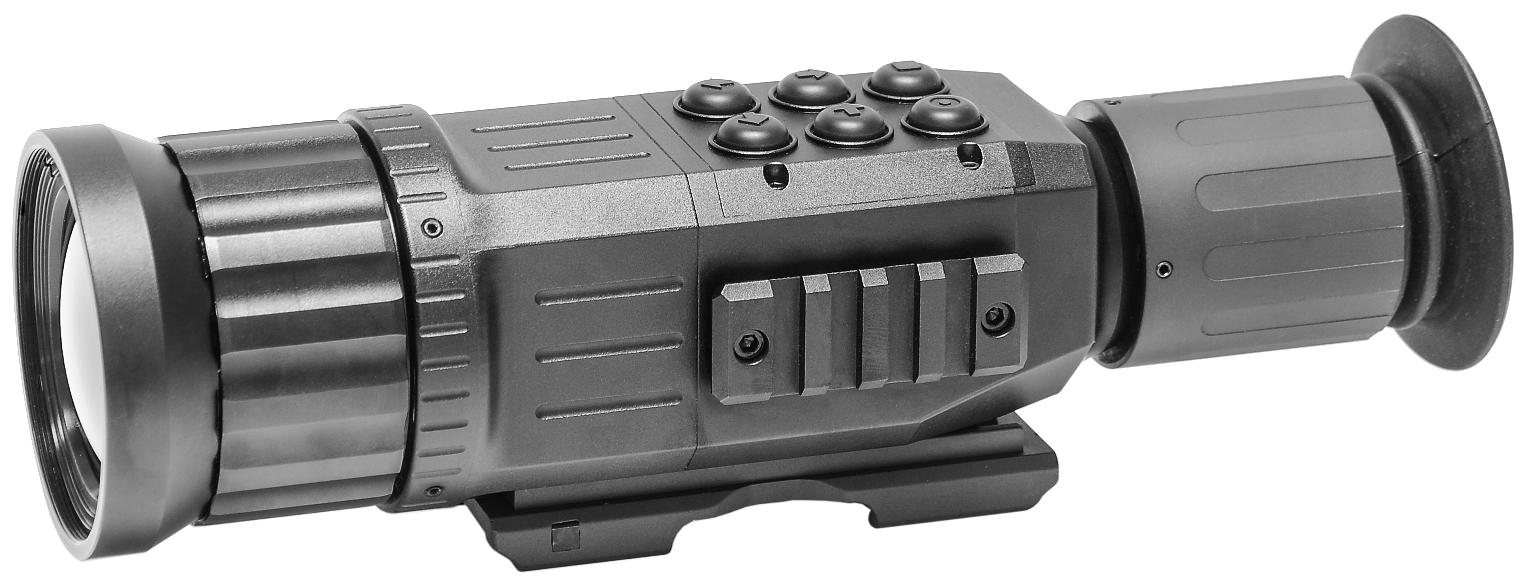

CTS-230-64 Elite Grade Tactical Clip-On Thermal Weapon Sights
Our Elite Grade Clip-On Thermal Weapon Sights CTS-230-64 are designed for close to medium-range engagements. Utilizing the quick release weapon mount, the CTS-230-64 easily attaches to and detaches from standard 1913 Picatinny rails in front of daytime scopes. This gives the operator the ability to deploy it on multiple weapon platforms without the need to dedicate a thermal scope.
CTS-230-64 sights have built-in digital collimator which allows the easy pairing with the host day scope.
Features:
- High-Resolution Uncooled FPA: 640×480
- Fast Refresh Rate: 50Hz
- Quality and “Fast” Germanium Lens
- Built-In Video Recorder
- Ultra-Low Power Consumption
- Stow Safety Feature (SSF)
- Precision-Machined Rugged Aluminum Body
- Weapon-Mountable: Fits 1913 Rails
- Video-out for External Display and Recording
- Stadiametric Rangefinder
- High-Res AMOLED Display 800×600
- 24-hour Operation
- Remote Control Unit
- Manual and Auto FPA Sensitivity Adjustment
- Manual Display Brightness Adjustment
- Black Hot / White Hot Polarity Control
- External Power Supply Compatibility
- Complete Dust– and Waterproof Protection
- Available for Worldwide Export
- 7-Year Manufacturer’s Warranty
- Made in Canada
| TECHNICAL SPECIFICATIONS | |
| Optical Magnification | 1X |
| Lens Focal Length and F-Number | 50mm, f/1.0 |
| Field of View | 12.4° x 9.3° |
| Focusing Range | 1m .. Infinity |
| FPA Resolution and Pitch | 640×480, 17µm |
| FPA Type | Uncooled, a-Si, Shutterless, Silent,
Auto-NUC (Uninterrupted Operation) |
| FPA Sensitivity | <50mK |
| FPA Refresh Rate | 50Hz |
| Digital Zoom | 2X and 4X |
| Display | AMOLED, Colour, 800×600 |
| Imaging Modes | 1 Monochrome + 8 Colour |
| Digital Video Recorder | Built-In (32 GB microSD Card Included) |
| Accepted Batteries | 4pcs AA, any kind: Lithium, Rechargeable, Alkaline, etc. |
| Battery Life | Up to 10 Hours |
| Max. Detection Human (1.7×0.5m) | 1,660 m |
| Max. Detection Vehicle (2.3×2.3m) | 2,250 m |
| Environmental Protection | IP67 or Better (Optional) |
| Dimensions, mm | 230x90x65 |
| Weight, grams | 1100 |
| Operating Temperature | -40°C .. +50°C |
| Warranty | 7 Years, Limited |
| Export | Available Worldwide * |
