Description
WOLFHOUND-X 2-in-1 Convertible Thermal Sight

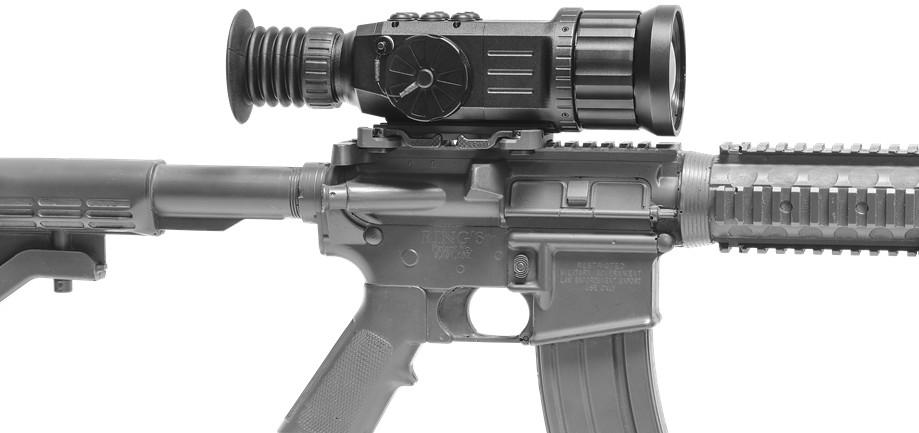

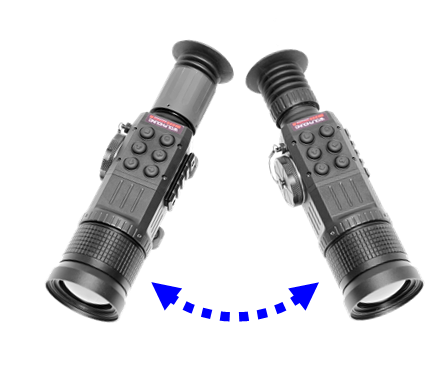

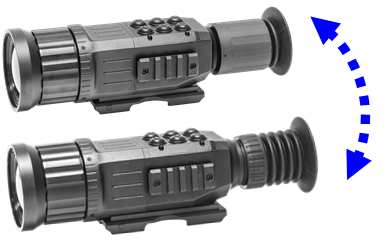

The WOLFHOUND-X is the universal thermal sight that serves multiple purposes, a single device can be used as: a clip-on thermal scope (“COTS”) or a standalone thermal sight (“STS”) with quick and easy “on-the-go” transformations between the two configurations.
Features:
- Easy Switch Between COTS and STS Configurations
- High-Resolution Uncooled FPAs: 384×288 and 640×480
- Stow Safety Feature (SSF)
- Fast Refresh Rate: 50Hz
- Built-In Video Recorder with microSD card
- Quality and “Fast” f/1.0 Germanium Lens
- Ultra-Low Power Consumption
- 8 Configurable Individual Profiles
- 8+8 Reticle Patterns
- Completely Silent System Operation
- Precision-Machined All-Aluminum Body
- High-Resolution AMOLED Display 800×600
- Day– and Night-Time Operation
- Manual and Automatic FPA Sensitivity Adjustment
- Manual Display Brightness Adjustment
- Black Hot / White Hot Polarity Control
- Complete Dust– and Waterproof Protection
- ITAR-Free: Available for Worldwide Export
- 7-Year Manufacturer’s Warranty
| WOLFHOUND-X38 | WOLFHOUND-X64 | |
| Optical Magnification | 3X (1X in Clip-On Mode) | 2X (1X in Clip-On Mode) |
| Objective Lens Focal Length | 50mm | |
| Objective Lens F-Number | f/1.0 | |
| Field of View | 7.5°x5.6° | 12.4°x9.3° |
| Focusing Range | 1m .. Infinity | |
| Diopter Adjustment Range | -6 .. +4 (Standalone Sight Mode) | |
| FPA Resolution and Pitch | 384×288, 17µm | 640×480, 17µm |
| FPA Type | Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation) | |
| FPA Sensitivity | <60mK | |
| FPA Refresh Rate | 50Hz | |
| Digital Zoom | 2X and 4X | |
| Display | AMOLED, Colour, 800×600 | |
| Imaging Modes | 1 Monochrome + 8 Colour | |
| Built-In Video Recorder | Yes, microSD Card Included | |
| Max. Detection Human (1.7×0.5m) | 1,660m | |
| Max. Detection Vehicle (2.3×2.3m) | 2,250m | |
| Accepted Batteries | 4pcs AA, any kind: Lithium, Rechargeable, Alkaline, etc. | |
| Battery Life | Up to 10 hours | |
| Environmental Protection | IP66, IP67 or Better (Optional) | |
| Dimensions, mm | 210x90x65 | |
| Weight, grams | 860 | |
| Operating Temperature | -40°C .. +50°C | |
| Warranty | 7 Years, Limited | |
| Export | Available Worldwide * | |
